E3MUPS120KHS , UPS 120KVA

Product datasheet

Specifications

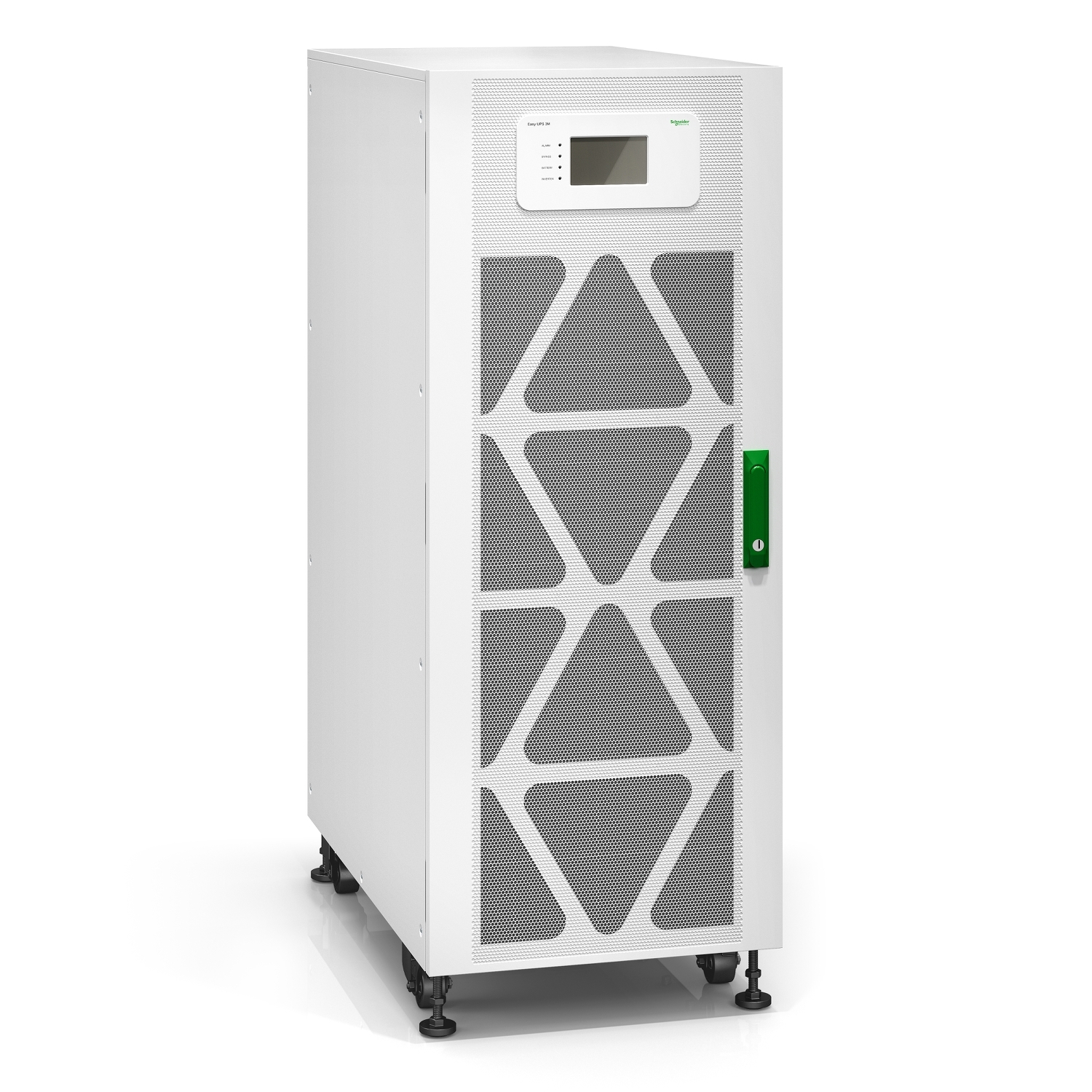

Easy UPS 3M 120kVA 400V 3:3 UPS for external batteries, Start-up 5×8

E3MUPS120KHS

Overview

Presentation

     Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 120 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5×8 start-up service.

Lead time                                                        Usually Ships within 6 Weeks

Main

Main Input Voltage

400 V 3 phases

Other Input Voltage

380 V 415 V

Main Output Voltage

400 V 3 phases

Other Output Voltage

380 V 415 V

Rated power in W

120 kW

Rated power in VA

120 kVA

Provided equipment

     Dust filter

     Installation guide

     Start-up service

Batteries & Runtime

Battery type

     External battery system

Number of battery filled slots

     0

Number of battery free slots               0

Physical

Colour

White (RAL 9003)

Height

130 cm

Width

50 cm

Depth

85 cm

Product weight

193 kg

USB compatible

     Yes

Aug 8, 2023

      1

Input

Maximum input current                          207 A

Max short time withstand current

     10 kA

Input harmonic distortion

     Less than 3 % for full load

Load power factor

     0.5 leading to 0.5 lagging without derating

Input Power Factor at Full Load

     0.99

Input voltage limits

     342…477 V

Network frequency                                   40…70 Hz

Output

Maximum configurable power in VA

     120 kVA

Maximum configurable power in W

     120 kW

Output frequency

     50 Hz sync to mains 60 Hz sync to mains

Harmonic distortion

     Less than 3 %

Output harmonic distortion

     < 3% linear load and < 5% non-linear load

Output overload operation

     10 minutes at 125% and 60 seconds at 150%

Output voltage tolerance

     +/- 1 %

UPS type

     Double conversion online

Wave type

Sine wave

Environmental

Ambient air temperature for operation

     0…40 °C

Relative humidity

     0…95 % non-condensing

Operating altitude

     0…4921 ft

Ambient air temperature for storage

     -25…55 °C

Storage Relative Humidity

     0…95 % non-condensing

Storage altitude

     0.00…15240.00 m

Acoustic level

     72 dBA

Heat dissipation

     20473 Btu/h

IP degree of protection                           IP20

Communications & Management

Control panel Packing Units

     Touch screen LCD user interface

Unit Type of Package 1

     PCE

Number of Units in Package 1

     1

Package 1 Height

     150 cm

Package 1 Width

     97.5 cm

Package 1 Length                                      62.5 cm

      2

Aug 8, 2023

Package 1 Weight Offer Sustainability

     223 kg

Sustainable offer status

     Green Premium product

REACh Regulation

     REACh Declaration

EU RoHS Directive

    Compliant EU RoHS Declaration

Mercury free

     Yes

China RoHS Regulation

     China RoHS declaration Product out of China RoHS scope. Substance declaration for your information

RoHS exemption information

     Yes

Environmental Disclosure

     Product Environmental Profile

Circularity Profile Contractual warranty

     End of Life Information

Warranty                                                          1 year on-site repair or replace with factory authorized Start-Up
