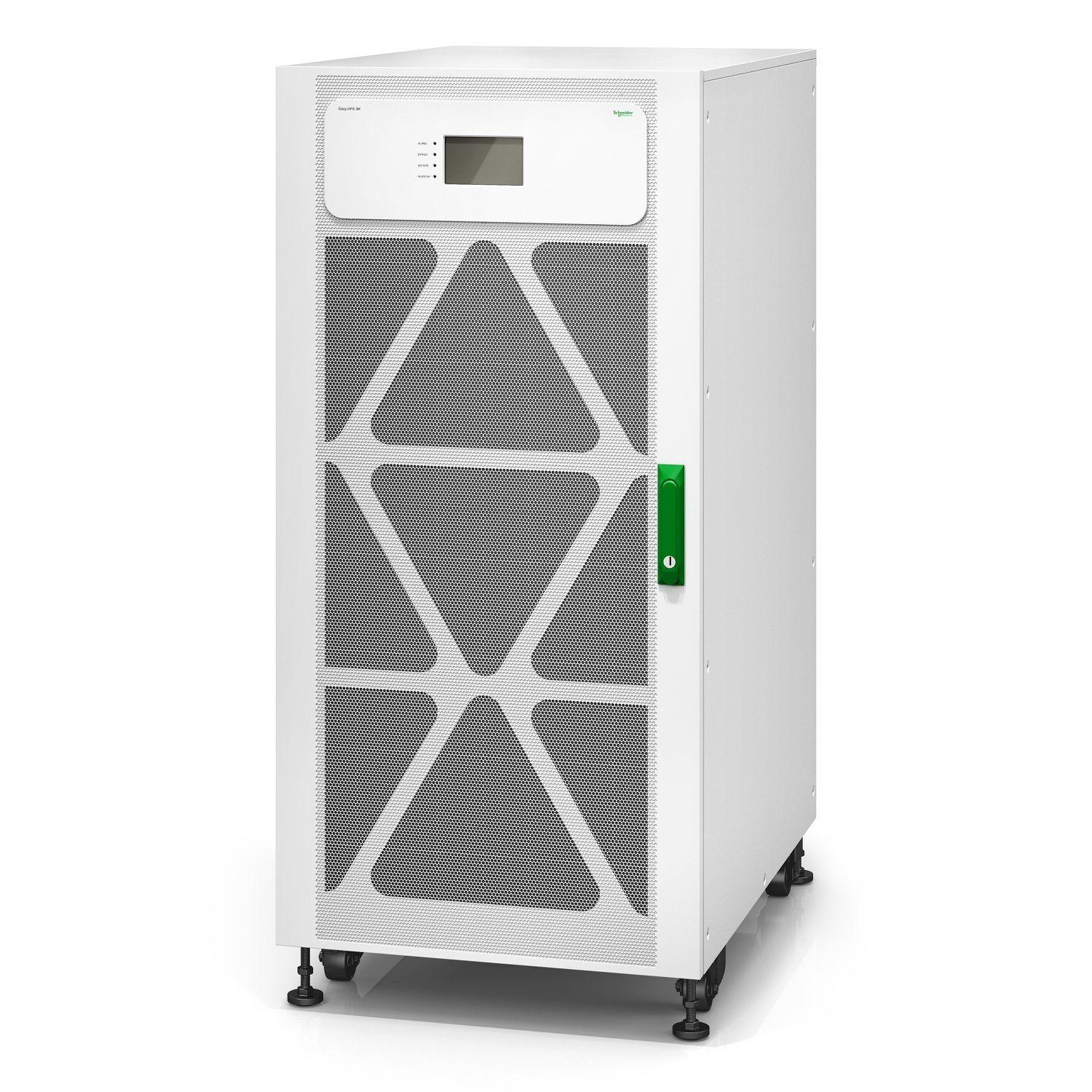

E3MUPS200KHS , UPS 200 KVA 3:3
APC Easy UPS 3M 200kVA 400V 3:3 UPS for External Batteries, Start-up 5×8
آماده‌اید تا بهره‌وری و امنیت تجهیزات خود را به اوج برسانید؟ با UPS 200 KVA 3:3 مدل E3MUPS200KHS، نگران خاموشی ناگهانی نباشید! این محصول با ظرفیت بالا و عملکرد بی‌نظیر خود، قدرت پشتیبانی فوق‌العاده‌ای را برای شما فراهم می‌کند. ایده‌آل برای کسب‌وکارهای حساس و تجهیزات حیاتی شما! همین امروز تهیه کنید و آرامش خاطر را تجربه کنید.
محصولات مرتبط
Specifications
| Product datasheet | ||||||
| Specifications | ||||||
 | Easy UPS 3M 200kVA 400V 3:3 UPS for external batteries, Start-up 5×8 | |||||
| E3MUPS200KHS | ||||||
| Overview | ||||||
| Presentation | Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 200 kVA 3 phase UPS with advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5×8 start-up service. | |||||
| Lead time Usually Ships within 6 Weeks | ||||||
| Main | ||||||
| Main Input Voltage | 400 V 3 phases | |||||
| Other Input Voltage | 380 V 415 V | |||||
| Main Output Voltage | 400 V 3 phases | |||||
| Other Output Voltage | 380 V 415 V | |||||
| Rated power in W | 200 kW | |||||
| Rated power in VA | 200 kVA | |||||
| Provided equipment | Dust filter | |||||
| Installation guide | ||||||
| Start-up service | ||||||
| Batteries & Runtime | ||||||
| Battery type | External battery system | |||||
| Number of battery filled slots | 0 | |||||
| Number of battery free slots 0 | ||||||
| Physical | ||||||
| Colour | White (RAL 9003) | |||||
| Height | 130 cm | |||||
| Width | 60 cm | |||||
| Depth | 85 cm | |||||
| Net weight | 304 kg | |||||
| USB compatible | Yes | |||||
| Oct 8, 2023 | 1 | |||||
| Input | ||||||
| Maximum input current 336 A | ||||||
| Max short time withstand current | 10 kA | |||||
| Input harmonic distortion | Less than 3 % for full load | |||||
| Load power factor | 0.5 leading to 0.5 lagging without derating | |||||
| Input Power Factor at Full Load | 0.99 | |||||
| Input voltage limits | 342…477 V | |||||
| Network frequency 40…70 Hz | ||||||
| Output | ||||||
| Maximum configurable power in VA | 200 kVA | |||||
| Maximum configurable power in W | 200 kW | |||||
| Output frequency | 50 Hz sync to mains 60 Hz sync to mains | |||||
| Harmonic distortion | Less than 3 % | |||||
| Output harmonic distortion | < 3% linear load and < 5% non-linear load | |||||
| Output overload operation | 10 minutes at 125% and 60 seconds at 150% | |||||
| Output voltage tolerance | +/- 1 % | |||||
| UPS type | Double conversion online | |||||
| Wave type | Sine wave | |||||
| Environmental | ||||||
| Ambient air temperature for operation | 0…40 °C | |||||
| Relative humidity | 0…95 % non-condensing | |||||
| Operating altitude | 0…4921 ft | |||||
| Ambient air temperature for storage | -25…55 °C | |||||
| Storage Relative Humidity | 0…95 % non-condensing | |||||
| Storage altitude | 0.00…15240.00 m | |||||
| Acoustic level | 72 dBA | |||||
| Heat dissipation | 34121 Btu/h | |||||
| IP degree of protection IP20 | ||||||
| Communications & Management | ||||||
| Control panel Packing Units | Touch screen LCD user interface | |||||
| Unit Type of Package 1 | PCE | |||||
| Number of Units in Package 1 | 1 | |||||
| Package 1 Height | 150 cm | |||||
| Package 1 Width | 97.5 cm | |||||
| Package 1 Length 72.5 cm | ||||||
| 2 | Oct 8, 2023 | |||||
| Package 1 Weight Offer Sustainability | 338 kg | |||||
| Sustainable offer status | Green Premium product | |||||
| REACh Regulation | REACh Declaration | |||||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |||||
| Mercury free | Yes | |||||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |||||
| RoHS exemption information | Yes | |||||
| Environmental Disclosure | Product Environmental Profile | |||||
| Circularity Profile Contractual warranty | End of Life Information | |||||
| Warranty 1 year on-site repair or replace with factory authorized Start-Up | ||||||
