E3SUPS10K3I, UPS 10KVA 3:1

Product datasheet

Specifications

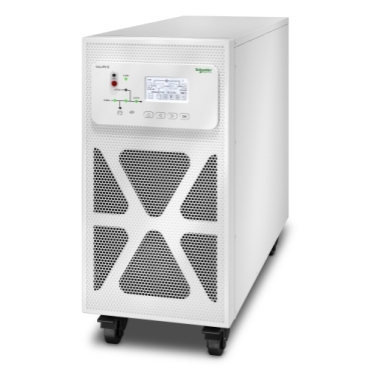

Easy UPS 3S 10 kVA 400 V 3:1 UPS for external batteries

E3SUPS10K3I

Overview

Presentation

    High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 10 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.

Lead time                                                        Usually Ships within 6 Weeks

Main

Main Input Voltage

400 V 3 phases

Other Input Voltage

380 V 415 V

Main Output Voltage

230 V

Other Output Voltage

220 V 240 V

Rated power in W

10 kW

Rated power in VA

10 kVA

Provided equipment                                 Dust filter

    Installation guide

Batteries & Runtime

Battery type

    Internal modular battery

Maximum short-circuit current

    10 kA

Number of battery filled slots

    0

Number of battery free slots               0

Physical

Colour

White (RAL 9003)

Height

53 cm

Width

25 cm

Depth

70 cm

Product weight

36 kg

USB compatible

    Yes

Aug 7, 2023

1

Input

Maximum input current                           18 A

Input harmonic distortion

    Less than 4 % for full load

Input Power Factor at Full Load

    0.99

Input voltage limits

    304…477 V

Network frequency                                   45…65 Hz

Output

Maximum configurable power in VA

    10 kVA

Maximum configurable power in W

    10 kW

Output frequency

    50 Hz sync to mains 60 Hz sync to mains

Harmonic distortion

    Less than 3 %

Output overload operation

    10 minutes at 125% and 60 seconds at 150%

UPS type

    Double conversion online

Crest factor                                                   3 : 1

Conformance

Product certifications Environmental

    CE EAC RCM

Ambient air temperature for operation

    0…40 °C

Relative humidity

    0…95 % non-condensing

Operating altitude

    0…3281 ft

Ambient air temperature for storage

    -15…40 °C

Storage Relative Humidity

    0…95 % non-condensing

Storage altitude

    0.00…15240.00 m

Acoustic level

    60 dBA

IP degree of protection                           IP20

Packing Units

Unit Type of Package 1

    PCE

Number of Units in Package 1

    1

Package 1 Height

    77.2 cm

Package 1 Width

    85.7 cm

Package 1 Length

    40 cm

Package 1 Weight

    50 kg
